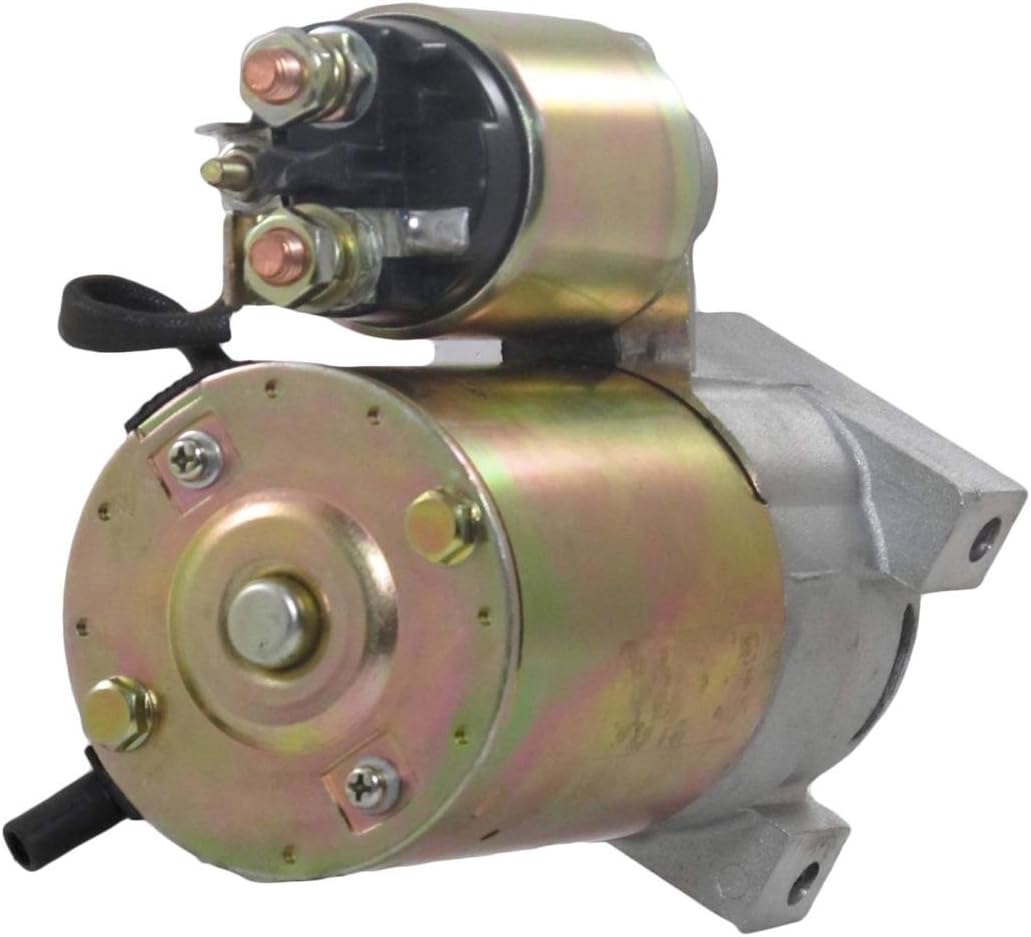

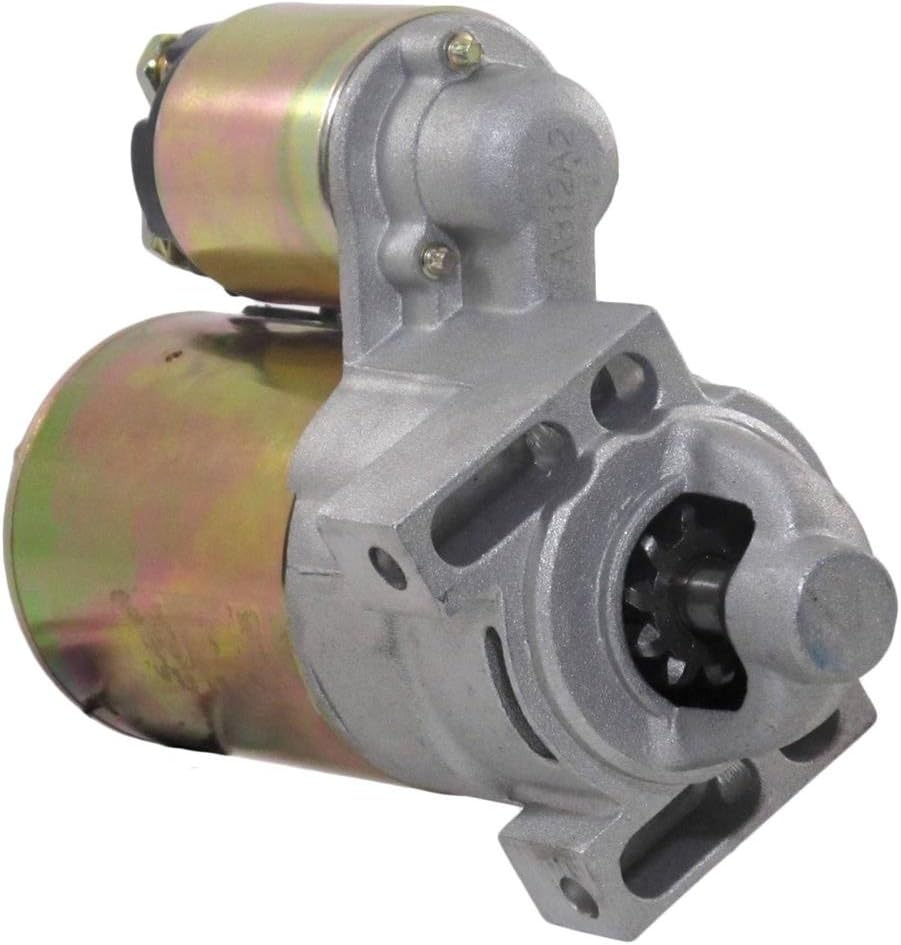

12V 10T Starter Motor M820
12V 10T Starter Motor M820
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability.
Starter - Voltage: 12V Rotation: Counterclockwise Teeth On Drive / Splines: 10 Source: Aftermarket
RAREELECTRICAL BRAND COMPATIBLE WITH DELCO, DENSO, JOHN DEERE, KOHLER, SABRE
KOHLER: 25-098-09
ITEM DESCRIPTION: STARTER
UNIT TYPE: DELCO
TYPE: PMDD
VOLTAGE: 12
ROTATION: COUNTERCLOCKWISE
TOOTH COUNT: 10
GEAR OD: 32.2MM / 1.268IN
MOUNTING EAR 1: 8.6MM ID UNTHREADED
MOUNTING EAR 2: 9.8MM ID UNTHREADED
NOTES: MAY REPLACE 9 TOOTH DENSO STARTERS #128000-7480 & 228000-2640 ALONG WITH JOHNSON ELECTRIC STARTERS #5174740
WEIGHT: 8.465 LBS / 3.85 KG
APPLICATIONS
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
JOHN DEERE LAWN MOWERS Z-TRAK F687 KOHLER 23HP DELCO SYSTEM
JOHN DEERE LAWN MOWERS Z-TRAK M653 KOHLER 23HP DELCO SYSTEM
JOHN DEERE LAWN MOWERS Z-TRAK M655 KOHLER 25HP DELCO SYSTEM
JOHN DEERE LAWN MOWERS Z-TRAK M665 KOHLER 25HP DELCO SYSTEM
JOHN DEERE LAWN TRACTORS LAWN G100 KOHLER 25HP DELCO SYSTEM
JOHN DEERE LAWN TRACTORS LAWN G110 KOHLER 25HP DELCO SYSTEM
JOHN DEERE LAWN TRACTORS LAWN L130 KOHLER 23HP DELCO SYSTEM
JOHN DEERE LAWN TRACTORS LAWN LX266 KOHLER 16HP DELCO SYSTEM
JOHN DEERE LAWN TRACTORS LAWN SABRE 1948GV KOHLER 19.9HP ENGINE CV20S-65587
JOHN DEERE LAWN TRACTORS LAWN SABRE 1948HV KOHLER 19.9HP ENGINE CV20S-65587
JOHN DEERE LAWN TRACTORS LAWN SABRE 2148HV KOHLER 21HP ENGINE CV22S-75557
JOHN DEERE LAWN TRACTORS LAWN SABRE 2354HV KOHLER 23HP ENGINE CV23S-75556
JOHN DEERE LAWN TRACTORS LAWN SABRE 2554HV KOHLER 25HP DELCO SYSTEM
